Sicolit – organic silicone-based facade plaster

DECLARATION OF PERFORMANCE
According with Regulation (EU) №305/2011

SICOLIT

№ 20130709-06-D

1. Unique identification code of product type: SICOLIT

2. Type, batch, or serial number or other element allowing identification of the construction product as required under Article 11, paragraph 4 of Regulation (EU) №305/2011: Silicone organic facade plaster (batch number printed on the package)

3. Intended use or uses of the construction product in accordance with the applicable harmonized technical specification, as foreseen by the manufacturer: Organic silicone-based mixture for protective and decorative finishing coats on facades and exterior walls.

4. Name, registered trade name or registered trade mark and contact address of the manufacturer, as required under Article 11, paragraph 4 of Regulation (EU) №305/2011: TERAZID Ltd.
5 „5004” Str., Gara Iskar, Sofia 1528, Bulgaria
Tel.: +359 2 979 9971
E-mail: office@terazid.com

5. Where applicable, name and contact address of the authorised representative whose mandate covers the tasks specified in Article 12, paragraph 2 of Regulation (EU) №305/2011: Not applicable.

6. System or systems of assessment and verification of constancy of performance of the construction product as set out in Regulation (EU) №305/2011 for construction products, Annex V: System 2+

7.1. In case of the declaration of performance concerning a construction product for which it was issued European Technical Assessment:
ETAG 004 — The notified body 1020 – Technical and Test Institute For Construction Prague has issued European Technical Assessment ETA-13/0214 according to ETAG 004.
The notified body has performed the initial inspection of the factory and of the factory production control and performs the continuous surveillance, assessment, and approval of the factory production control.
The notified body has issued EC Certificate of Factory Production Control №1020-CPD-060037435.
This certificate attests that all provisions concerning the attestation of factory production control, described in ETA 13/0214, were applied.

7.2. In case of the declaration of performance concerning a construction product covered by harmonized standard:
EN 15824 — Specifications for external renders and internal plasters based on organic binders.

8. Declared performance:

Essential characteristics	Performance	Harmonized technical specification
Reaction to fire	A2 – s1, d0	BDS EN 13501-1:2007+A1:2009
Density	1950 kg/m³	BDS EN 1015-6
Adhesion with the base	1.15 MPa	BDS EN 24624
Coefficient of water vapour transmission	205 g/m²·d V1	BDS EN 15824
Coefficient of capillary absorption of water – c	0.13 kg/m²·h0.5 class W2	BDS EN 15824
pH at 20°C	6.3	BDS EN ISO 787-9
Content of volatile organic compounds /VOC/	9.3 g/l < 40 g/l	BDS EN ISO 11890-2

9. The performance of the product identified in points 1 and 2 is in conformity with the declared performance in point 8.
This declaration of performance is issued under the sole responsibility of the manufacturer identified in point 4.



TECHNICAL DATA SHEET

SICOLIT

Silicone facade plaster
Organic silicone-based mixture for protective and decorative finishing coats on facades and exterior walls.
In accordance with EN 15824.
In accordance with the requirements of ETAG 004.

PURPOSE
SICOLIT is a ready-to-use finishing coat based on organic silicone emulsion and polymers with added mineral fillers with selected grain size, pigments, and preservatives. The product is used for creating fine protective and decorative coatings on facades and exterior walls. The plaster creates a white or colourful waterproof rough surface. It provides possibilities for a wide variety of architectural solutions for facades and individual facade elements.

SICOLIT has a wide range of colours and sizes of the structural grains, along with different options for structure formation. It has very high vapour permeability and water-repellent characteristics, making it extremely suitable for areas with high relative air humidity and for facades insulated with high vapour-permeable material, such as mineral wool. The variety of colours is provided by high-quality, weather-resistant pigments. The final decorative effect can be achieved with a ‘dragged’ or ‘scratched’ structure. Colouring is available according to a catalogue of 210 colours. SICOLIT is a component of the External Thermal Insulation Composite System TERAZID BIO CLIMA, approved with ETA – 13/0214.

PROPERTIES
❖ Ready-to-use
❖ Vapour-permeable
❖ Water-repellent
❖ Resistant to different weather conditions
❖ UV-resistant

PREPARATION OF THE BASE
The base must be dry, strong, and free of grease, dust, and cracks. Surfaces should be smooth and free of holes. If necessary, gaps or uneven elements of the facade should be filled with rough coating. In case of repairing facade surfaces, unstable areas should be removed, and areas with old paint and grease spots must be thoroughly cleaned. Repaired sections must have the same strength and bearing capacity as the old base before priming. The base should be primed with TERAZID G-33, at least 24 hours before SICOLIT application.

CHARACTERISTICS AND TECHNICAL DATA
▪ Colour: according to catalogue
▪ Type: homogeneous granular mass
▪ Density: 1950 kg/m³
▪ Resistance to steam passing: µ = 53
▪ Minimal temperature of film formation: +5˚C
▪ Resistance to rain: after 24 hours (at normal weather conditions – temperature of 20˚C and air humidity – 50%)
▪ Bond strength with concrete after 7 days: 1.65 MPa

Structures:
▪ Dragged:

• Fine grained 1.5 mm

• Middle grained 2.0 mm

• Grained 2.5 mm

• Large grained 3.0 mm
  ▪ Scratched:

• Micro grained 1.0 mm

• Fine grained 1.5 mm

• Middle grained 2.0 mm

APPLICATION AND PROCESSING
The application of SICOLIT can start when at least 24 hours after priming with TERAZID G-33 have passed. When applying on large areas, mix the content of 2–3 buckets in a bigger container. If necessary, the plaster can be slightly diluted with TERAZID G-33 but no other ingredients should be added.

Before application, stir the content thoroughly with a mechanical mixer. Rusty tools are not allowed. The thickness of the coating is defined by the marble grains and is manually applied using a plastic mortarboard.

For “dragged” structure, structure the material with a plastic mortarboard, leave for 10 minutes, and then smooth to achieve the desired effect. Dragging can be done vertically, horizontally, diagonally, or with circular movements.

For “scratched” structure, structure the material with circular movements, without pressure, to achieve the desired final effect.

It is recommended to complete the work on one surface without interruption. No unfinished surfaces should be left. For adjacent areas with different colours, separate them with paper tape to avoid staining. Before starting, cover areas that are not going to be plastered. SICOLIT should not be applied under direct sunlight or strong wind.

EXPENSE
▪ Dragged:

• 1.5 mm – 2.5 kg/m²

• 2.0 mm – 2.9 kg/m²

• 2.5 mm – 3.6 kg/m²

• 3.0 mm – 4.3 kg/m²
  ▪ Scratched:

• 1.0 mm – 1.9 kg/m²

• 1.5 mm – 2.8 kg/m²

• 2.0 mm – 3.5 kg/m²

TOOLS FOR WORK
▪ Mechanical mixer
▪ Stainless steel trowel
▪ Plastic mortarboard
▪ Brush

WEATHER CONDITIONS AT WORK
The minimum twenty-four-hour temperature of the base should not be less than +5˚C, and the maximum – not higher than +40˚C. Do not apply during rain, forecasted rain, direct sunlight, or strong wind.

FORM OF DELIVERY

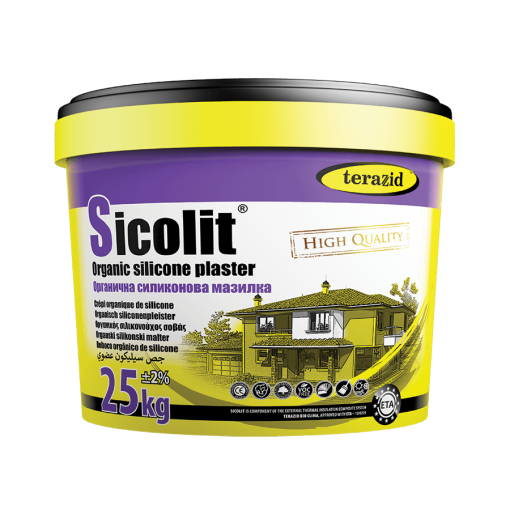

Paste in a plastic bucket of 25 kg.

NOTES
Characteristics and technical data are defined at a standard temperature of 20˚C and relative humidity of 50%. In other weather conditions, the technological times of some processes may be shorter or longer. The information is based on the manufacturer’s practical experience and technical tests in specialized laboratories. Do not mix with other building materials. All hazards and precautionary statements about SICOLIT can be checked in the Safety Data Sheet of the product.

STORAGE
12 months in the originally sealed package, in a dry place, protected from freezing.

CE
TERAZID Ltd.
5 “5004” Str. Gara Iskar, Sofia, Bulgaria
ETAG 004, EN 15824
NB 1020
DoP № 20130709-06-D
SICOLIT
Organic silicone-based mixture for protective and decorative finishing coats on facades and exterior walls
Reaction to fire	A2 – s1, d0
Density	1950 kg/m³
Adhesion with the base	1.15 MPa
Coefficient of water vapour transmission	205 g/m²·d V1
Coefficient of capillary absorption of water – c	0.13 kg/m²·h0.5 class W2
pH at 20°C	6.3
Content of volatile organic compounds /VOC/	9.3 g/l < 40 g/l

The manufacturer recommends checking the suitability of the product in the Technical Data Sheet. The same is responsible for the product quality, but not for the ways and conditions of its applying. The information into the present Technical Data Sheet is reliable but only if the product is used under stated conditions. The responsibility of any other usage of the product, including its usage in a combination with any other product or a process, is borne by the user.

MATERIAL SAFETY DATA SHEET
According to (EU) 830/2015

SICOLIT

1. Identification of the Substance/Mixture and of the Company

1.1. Product identifier – SICOLIT 1.2. Application of the substance Silicone facade plaster. 1.3. Details of the supplier of the safety data sheet TERAZID Ltd. 5, 5004 Street, Gara Iskar 1528 Sofia, Bulgaria tel. +3592/9799971, office@terazid.com 1.4. Emergency telephone number 112 UMHATEM “Pirogov” (toxicology) – +3592/9154409; +3592/9154233

2. Hazards Identification

2.1. Classification of the substance or mixture – Classification in accordance with the Regulation (ЕО) 1272/2008 – CLP The product is NOT classified as „dangerous“. 2.2. Label elements Precautionary statements: P101 – If medical advice is needed, have product container or label at hand. P102 – Keep out of reach of children. P262 – Do not get in eyes, on skin, or on clothing. P305 + P351 + P313 – IF IN EYES: Rinse cautiously with water for several minutes. Get medical advice/attention. P280 – Wear protective gloves/protective clothing/eye protection/face protection. P301 + P311 – IF SWALLOWED: Call a POISON CENTER or doctor/physician. P410 – Protect from sunlight. P401 – Store at temperatures higher than +5°C. 2.3. Other hazards None. For all warnings and recommendations, see Section 15.

3. Composition/information on ingredients

General chemical description – Acrylic-silicone dispersion, containing mineral fillers and modified additives. Information of the substances in accordance with CLP 1272/2008/EC Does not contain products, presenting in this section.

4. First Aid Measures

4.1. Description of the first aid measures Inhalation – Remove the person to fresh air. If the symptoms continue, immediately seek for qualified medical help. Skin contact – Immediately rinse the area of the contact with plenty of water, then wash it thoroughly with soap and water. Eye contact – Rinse with plenty of water for a period of at least 15 minutes and open eyelid. Seek for qualified medical help. Ingestion – Wash the mouth and the throat. Drink plenty of water. Seek for qualified medical help. 4.2. Most important symptoms and effects, both acute and delayed None. 4.3. Indication of any immediate medical attention and special treatment needed – see p. 4.1.

5. Firefighting Measures

SICOLIT is non-combustible and prevents flames from spreading. Does not support combustion of other products. 5.1. Extinguishing media Water mist, water spray – sprayer, dry chemical, foam, carbon dioxide. Inappropriate extinguishing media – water under pressure. 5.2. Special hazards, arising from the substance or mixture – Non known 5.3. Advice for firefighters – Standard protective equipment when extinguishing a fire.

6. Accidental Release Measures

6.1. Personal precautions, protective equipment and emergency procedures Gloves, masks, protective clothing for work. Contact with skin and eyes should be avoided. 6.2. Environmental precautions Prevent this product from release in the environment. Measures should be taken for preventing contamination of surface and underground watercourses, soil, as well as falling into the drains. In the event of an accident and/or spill of the product, measures for localization and limitation should be taken, and the collected amount of the product should be temporarily stored into a special, tightly closed and labeled containers, and after that they should be transferred to people, holding permits under the Article 37 of the Waste Management Act (publication SG, issue 53, 2012). 6.3. Methods and materials for containment and cleaning up The spilled amount should be mechanically removed, and then the place should be washed thoroughly with water in accordance with the measures under art.6.2. Collected amount should be stored in special, tightly closed and labeled containers and to be temporarily stored on the territory of the company, and after that they should be transferred to people, holding a permit under the Waste Management Act (WMA).

7. Handling and Storage

7.1. Precautions for safe handling The product should be used only according to its main purpose. Avoid skin and eye contact. Keep the package tightly closed after usage. 7.2. Conditions for safe storage, including any incompatibilities It should be stored in ventilated and dry places, into the originally sealed containers. Temperatures lower than +5C and higher than +40C should be avoided. It should be separately stored from food and drinks. 7.3. Specific Usage There is no specific usage. It should be used only according to its main purpose.

8. Exposure Controls/Personal Protection

8.1. Control parameters – No special protection measures are necessary. 8.2. Exposure controls 8.2.1. Respiratory protection – prolonged inhalation of fumes should be avoided. 8.2.2. Skin protection – skin contact should be avoided, wear protective gloves. Clothing, soaked with the product should be changed. 8.2.3. Eye protection – eye contact should be avoided, wear safety glasses. 8.2.4. Common protection – it should be stored away from food, drinks and food for animals.

9. Physical and Chemical Properties

9.1. Information on basic physical and chemical properties

▪ Appearance: liquid paste material
▪ Odour: light
▪ pH at 20°C: 6.3
▪ Density: 1950 kg/m³
▪ Solubility: partial
▪ Explosive properties: non explosive

9.2. Other information – no data.

10. Stability and reactivity

10.1. Reactivity – no hazardous reactions. 10.2. Chemical stability – the product is stable under storage and usage in accordance with the indications. 10.3. Possibility of hazardous reactions – in accordance with section 10.1. 10.4. Conditions to avoid – temperatures lower than +5C and higher than 40C should be avoided. 10.5. Incompatible materials – no data. 10.6. Hazardous decomposition products – it is unlikely to release carbon oxides at fire.

11. Toxicological information

11.1. Information for the toxicological effects Toxicological properties of the product are not tested. The product is classified under the conventional method in accordance with Regulation (ЕО) 1272/2008 – CLP. On the basis of its composition, the product can be defined as not having any toxic effects under a proper usage. Ingestion – The product is not hazardous of acute poisoning. Inhalation – It is not considered as harmful at normal conditions. Skin contact – Prolonged contact may cause irritation. Eye contact – Prolonged and repeated contact may cause irritation and redness.

12. Ecological information

12.1. Toxicity Polymer dispersion data: Toxicity to fish: LC50 (96 h) > 100 mg/l, (OECD Directive 203, static) Aquatic invertebrates: ЕC50 (48 h) > 100 mg/l, (OECD Directive 202, part 1, static) Aquatic plants: ЕC50 (72 h) > 100 mg/l, (OECD Directive 201) Micro-organisms/Effect of the active sediment: ЕC20 (0,5 h) > 100 mg/l, active sediment (DIN EN ISO 8192-OECD 209-88/302/EEC, P. C) On the basis of the experience, the product is not expected to be hazardous to the environment. 12.2. Persistence and degradability – No data. 12.3. Bio-accumulative potential – Accumulation in the organism is not expected. 12.4. Mobility in soil This product is not biologically mobile. 12.5. Results of PBT and vPvB assessment – the product meets the criteria of PBT (persistent, bio-accumulative and toxic) and vPvB (very persistent and very bio-accumulative). 12.6. Other adverse effects No data. General information: Do not allow the product to enter into the soil or natural watercourses.

13. Disposal considerations

Product waste, such as residual quantities and packages, should be collected into a special, tightly sealed and labelled containers, temporarily stored, and after that to be transferred to people, holding a permit in accordance with article 37 of the Waste Management Act (publication SG, issue 53, 2012). Waste code, in accordance with Regulation №2 from 23.07.2014 for Waste Classification: 08 01 20 – liquid suspensions of paints, others than those mentioned in 08 01 19 Waste Packages code: 15 01 02 – plastic packages. Completely empty the packages and dispose them in accordance with the local regulations.

14. Transport information

It is not a hazardous load, in accordance with RID, ADR, ADNR, IMDG, IATA-DGR. It should be transported under the respective rules for transportation, concerning the respective type of transport and ensuring the safety of the load.

15. Regulatory information

15.1 Content of volatile organic compounds /VOC/, in accordance with the Ordinance on limiting the emissions of volatile organic compounds in the use of organic solvents in certain paints, varnishes and auto reparatory products, category А, sub point c) 9.3 g/l < 40 g/l 15.2 Classification and labelling of the product in accordance with Regulation (ЕО) 1272/2008 – CLP /full text of the codes/ GHS Pictograms: No. Signal word: No. Recommendations for danger (N – codes): None. Hazard statements (H – codes): None. Precautionary statements (P – codes): P101 – If medical advice is needed, have product container or label at hand. P102 – Keep out of reach of children. P262 – Do not get in eyes, on skin, or on clothing. P305 + P351 + P313 – IF IN EYES: Rinse cautiously with water for several minutes. Get medical advice/attention. P280 – Wear protective gloves/protective clothing/eye protection/face protection. P301 + P311 – IF SWALLOWED: Call a POISON CENTER or doctor/physician. P410 – Protect from sunlight. P401 – Store at temperatures higher than +5°C.

15.3 LEGISLATION
National Legislation:
▪ Law of Protection from the Harmful Impact of the Chemical Substances and Preparations
▪ Environmental Protection Law
▪ Health and Safety at Work Act
▪ Ordinance №3 on the minimum requirements for safety and protection of the workers when using personal protective equipment at the workplace
▪ Waste Management Act
▪ Ordinance №2 from 23.07.2014 for Waste Classification
▪ Ordinance on the order and the method of classification, labelling, and packaging of chemical substances and preparations

European Legislation:
▪ Regulation (EC) 1272/2008 – CLP from 16th December 2008, concerning the classification, labelling, and packaging of substances and preparations
▪ Regulation (EU) 830/2015 from 28th May 2015

16. Other Information

16.1. Indication of changes Format in accordance with Regulation (ЕО) 830/2015 from 28th May 2015 amending Regulation № 1907/2006 (REACH) of the European Parliament. 16.2. Training Advice In addition to the training programs on environment and health and safety of the workers, the companies need to be sure that their workers read, understand and apply the requirements of the MSDS. 16.3. Additional information See the application(s) of exposure scenarios for the following substances: The basic information of the exposure scenarios of the substances in the mixture are included in points 1, 2, 3, 8, 11 and 12.

16.4. Disclaimer

This safety data sheet and the data inside of it are based on industrial and commercial experience of many years and are fully complied with the current active legislation of the Republic of Bulgaria and the European Union. This safety data sheet is not intended to guarantee any specific properties and qualities of the product. The information inside of it is reliable but, on the circumstance, that the product is used in accordance with the indicated conditions and the application, specified on the package and/or in the technical literature. Responsibility of any other use of the product, including when using it in combination with another product or process is completely under the responsibility of the user. It is understood that the user is responsible for defining the appropriate precautions and for applying the legislation, concerning his own activity.
